Maze Generation

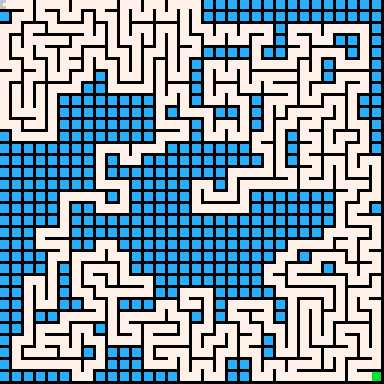

Figure 1: Maze Generation in PICO-8

This maze demo is a perfect visualization of stack backtracking. The maze is drawn by randomly picking a cardinal direction from a given cell and then continuing down that path. If there are no unvisited cells then backtrack until you find one. I artificially slowed the algorithm down to only draw one cell per frame so you can see the computer drawing out the maze. This project was inspired by this awesome One Lone Coder video.

You can view the code for this here (as well as below) and run the PICO-8 cart here.

pico-8 cartridge // http://www.pico-8.com
version 27
__lua__
-- MAZE
-- BY ADAM RICHARDSON
-- INSIRED BY ONE LONE CODE: PROGRAMMING MAZES
-- https://www.youtube.com/watch?v=y37-gb83hke

size=4
cols=128/size
rows=128/size

not_visited=0
east_path=1
west_path=2
south_path=3
north_path=4

grid={}
visited_count=0

function stack()
   return {
      x=0,
      y=0,
      n=nil,
   }
end

top=stack()

function _init()
   for i=1,(cols*rows) do
      grid[i]=not_visited
   end
   top.x=0
   top.y=0
   top.n=nil
   visited_count=1
   grid[0]=east_path
end

function idx_xy(x,y)
   return y*cols+x
end

function next_point(x,y)
   local r=flr(rnd(4))
   local xy={
      x=x,
      y=y,
   }
   if r==0 then
      if xy.y>0 then
         xy.y-=1
      end
   elseif r==1 then
      if xy.y<(rows-1) then
         xy.y+=1
      end
   elseif r==2 then
      if xy.x<(cols-1) then
         xy.x+=1
      end
   elseif r==3 then
      if xy.x>0 then
         xy.x-=1
      end
   end
   return xy
end

function has_not_visited_neighbors()
   if top.y>0 then
      if grid[idx_xy(top.x,top.y-1)]==not_visited then
         return true
      end
   end

   if top.y<(rows-1) then
      if grid[idx_xy(top.x,top.y+1)]==not_visited then
         return true
      end
   end

   if top.x>0 then
      if grid[idx_xy(top.x-1,top.y)]==not_visited then
         return true
      end
   end

   if top.x<(cols-1) then
      if grid[idx_xy(top.x+1,top.y)]==not_visited then
         return true
      end
   end

   return false
end

function advance_point()
   if has_not_visited_neighbors() then
      local xy=next_point(top.x,top.y)
      local idx=idx_xy(xy.x,xy.y)
      while grid[idx] != not_visited do
         xy=next_point(top.x,top.y)
         idx=idx_xy(xy.x,xy.y)
      end

      if xy.x>top.x then
         grid[idx]=east_path
      elseif xy.x<top.x then
         grid[idx]=west_path
      end

      if xy.y>top.y then
         grid[idx]=south_path
      elseif xy.y<top.y then
         grid[idx]=north_path
      end

      visited_count+=1

      local t=stack()
      t.x=xy.x
      t.y=xy.y
      t.n=top
      top=t
   else
      while not has_not_visited_neighbors() and top.n!=nil do
         top=top.n
      end
   end
end

function _update60()
   if visited_count <= (cols*rows) then
      advance_point()
   else
      done=true
   end
   if btnp(❎) then
      _init()
   end
end

function _draw()
   cls()
   for i=0,cols-1 do
      for j=0,rows-1 do
         local idx=idx_xy(i,j)
         local r={
            x=i*size-1,
            y=j*size-1,
            w=size-2,
            h=size-2,
         }
         local wall={x=0,y=0,w=0,h=0}
         local c=12
         if grid[idx]==east_path then
            c=7
            wall.x=r.x-2
            wall.y=r.y
            wall.w=2
            wall.h=r.h
         end
         if grid[idx]==west_path then
            c=7
            wall.x=r.x+r.w
            wall.y=r.y
            wall.w=2
            wall.h=r.h
         end
         if grid[idx]==south_path then
            c=7
            wall.x=r.x
            wall.y=r.y-2
            wall.w=r.w
            wall.h=2
         end
         if grid[idx]==north_path then
            c=7
            wall.x=r.x
            wall.y=r.y+r.h
            wall.w=r.w
            wall.h=2
         end

         if idx==0 then
            c=6
         end

         if idx==(cols*rows)-1 then
            c=11
         end

         if idx!=0 then
            rectfill(
               1+wall.x,
               1+wall.y,
               1+wall.x+wall.w,
               1+wall.y+wall.h,
               7)
         end

         rectfill(
            1+r.x,
            1+r.y,
            1+r.x+r.w,
            1+r.y+r.h,
            c)
      end
   end
end
